TL-439 Solenoid Latch

Characteristic

Latch unit installed solenoid mechanism.

This latch have longer stroke and high holding force than other products.
Because the solenoid have lead with connector, it is easy to wire.

Application

Distribution boards / Distribution panels / Control boards / Lockers, etc.

Note

Do not use with latch direction up.
otherwise, latch will not be operated.
Be careful not to touch the head of M3 screw to solenoid when you install it. (Use screw: +2mm from installing board thick.)
Please confirm residual magnetism with actual use when this product will be in state of “prolonged energization” or “frequently of energized and unenergized” for judging its potential.
Remove any load to the latch when energizing it.

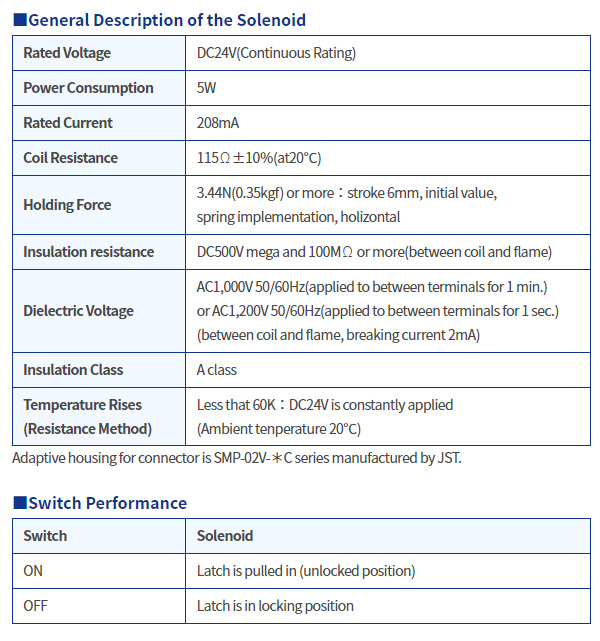

(View table in full size)
